  • Four Model Types Designed to Fit a Wide Range of Applications
  • One Meter to Measure all your Values
  • DIN (96x96 mm) Case Needing Only 2.80" (71 mm) Behind the Panel
  • Easy Installation - Software Detection/Correction of Wiring Errors
  • Wide Backlit LCD Display for Easy Viewing
  • Easy and Safe to Use - Four Keys Select all Parameters

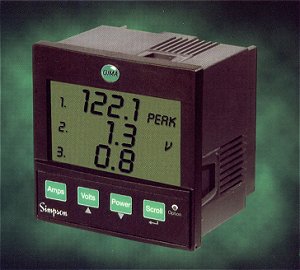

The GIMA series digital panel meter measures values by replacing ammeters, voltmeters, switches, power factor, kW indicators & kWh meters. The Simpson GIMA series provides a single source of instrumentation for all measurement and metering requirements.

The GIMA series offers accurate, high-speed, continuous measurements irrespective of harmonics and waveform interruptions. Each GIMA unit can be used as a single-phase or a three-phase meter.

These meters feature "Auto-Commissioning" to ensure that a reverse current transformer connection will not cause reading errors. Per phase kW and Power Factor allow a cross-phase connection error to be quickly and easily detected.

The GIMA series can also be tested at minimal loads. This is possible by the full four-digit resolution of single-phase values and five-digit resolution of three-phase values.

The GIMA series meters off maximum visibility with a custom backlit LCD display. The display is fully visible under most conditions and from most angles. Clear display legends ensure simple readings with no multipliers required.

To provide more value to this series, Simpson is offering a range of accessories such as serial communications, analog outputs and three-phase current transformers. Some of these accessories are retro-fit options. With the additions of these accessories, the GIMA series is able to fit within most applications.

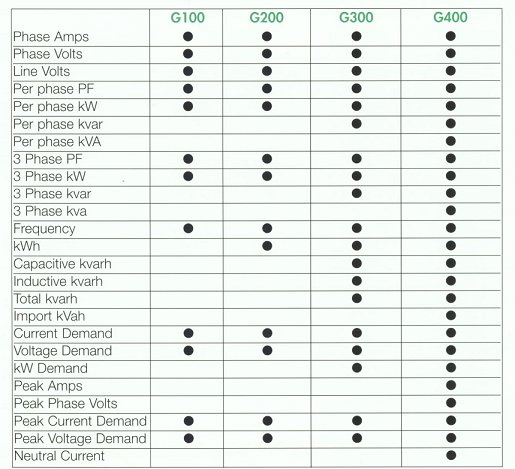

GIMA Series Models & Parameters

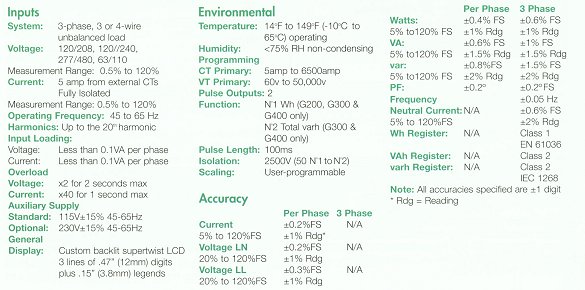

GIMA Series Specifications


GIMA Options MODBUSâ Communications

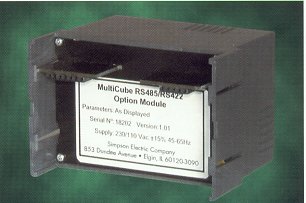

The MODBUSâ Communications Options Module for the GIMA Series adds multi-drop serial communications to any standard GIMA meter. The device uses a high speed microprocessor to extract information from the meter and interface to an industry standard MODBUSâ system.

Use of a dedicated communications processor ensures optimum efficiency, allowing fast access to data on systems with multiple meters. At 19200 baud, it is possible to access and download the main instantaneous data tables (24 values) from 10 GIMA meters in one second.

The use of MODBUS
â protocol ensures compatibility with existing systems and/or many readily available software packages.

This Options Module may configured as RS485 or RS422 providing 2 or 4-wire communicatins over distances up to 3/4 mile. Data rates of 4800, 9600 or 19200 baud may be selected to suit system requirements.
The Communicatins Option Module will be available in two formats:
  • Standard: Only parameters displayed on the GIMA meter can be accessed via MODBUSâ
  • All Value: The full set of GIMA G400 parameters can be accessed via MODBUSâ from any GIMA




GIMA Options MODBUSâ Specifications

Auxiliary Supply
Option Module 115VAC or 230VAC 50/60-Hz +/-15%
Load 3VA maximum
Isolation 2.5kV continuous (internally wired to GIMA ausiliary mains inputs)



Mechanical (Options Module)
Enclosure Custom options enclosure.
Material Mablex UL94-V-0
Dimensions Options
Unit Unfitted
GIMA Meter + Options

Behind Panel
Weight
Terminals
2.95"x2.32"x3.43"
(75mmx59mmx87mm)
5.43"x3.78"x3.78"
(138mmx96mmx96mm)
5.12" (130mm)
Approx. 7 oz. (200g)
Rising Cage.
Cable (max) .06" (1.5mm2) Solid,
.04" (1.0mm2) Stranded



MODBUSâ Serial Comms
Bus Type

RX Loading
TX Drive
RS422 / RS485 4/2 wires + OV.
Half Duplex
1/4 unit load / options module
32 unit loads
Protocol
MODBUSâ RTU with 16 bit CRC.
(JBUS compatible)
Baud Rate 4800, 9600 or 19200 user programmable
Address User-programmable (1 - 247)
Speed
Max Data Packet
Command Rate

Any complete table (energy, instantaneous, set-up, etc.)
New command within 5mms of previous one

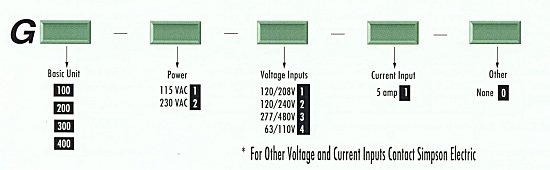

Ordering Information
